Aavara HDMI over IP system

Aavara HDMI over IP system is an easy-to-setup & easy-to-use HD Video Matrix system for both Commercial and Residential AV installation. We provide Aavara AV Master Web Interface which built-in in our HDMI over IP box for easy setup and operation.

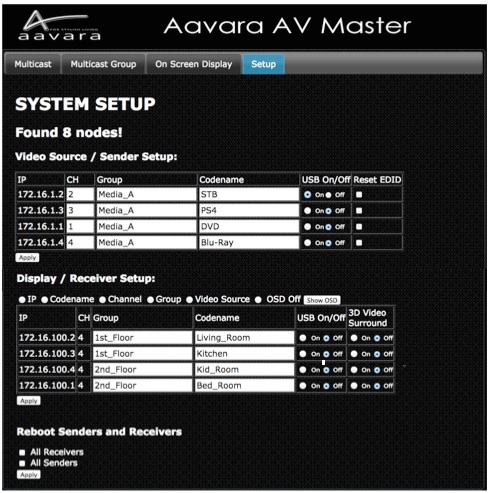

Aavara AV Master Web Control

  1. One Central Access Web Interface to control entire HDMI Over IP AV Matrix system.
  2. Any PC/Notebook/Apple Mac/iPad/Tablet with web browser* for setup and operate Aavara AV Master
  3. Auto search all senders and receivers on network.

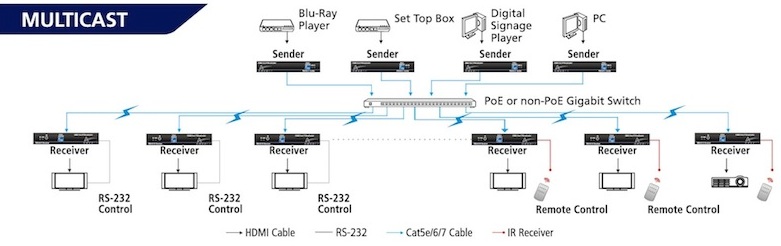

  4. Easy Multicasting just by clicks
  5. Grouping function for multicast managing on large number of displays/receivers.
  6. On Screen Display to show information or message
  7. Receiver video Snap shot, so you can monitoring the video out on displays at remote site. (PB5000 only)
  8. 3rd controller integration, Control4, AMX, Crestron, RTI and Elan g!
* Web Browser which support Javascirpt required.

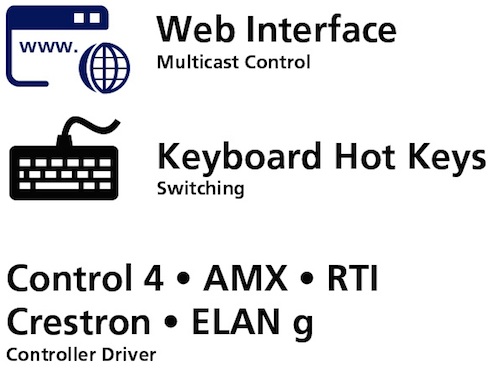

3rd Party Driver for Integration

Aavara provided Control4, AMX, Elan g!, RTI and Crestron controller driver that allow those major brands of controllers to control Aavara HDMI Over IP AV Matrix system. It won't need extra controller box or hardware, 3rd party controller control Aavara HDMI Over IP Box directly by IP command.
  1. Auto search all senders and receivers on network
  2. Multicasting channel switching control
  3. Multicasting channel switching control by grouping
  4. Show OSD function
  5. Issue remote RS232 commands
  6. VideoWall function




Unlimited Ethernet Managed or Smart Switch Selection

Aavara controller driver will allow 3rd party controller control Aavara HDMI Over IP Box directly, it don't control Ethernet Switch. So SIs and users can select any brand and model of Smart Gigabit Switch or Managed Gigabit Switch to work with Aavara HDMI Over IP system. Just to enable IGMP Snooping and blocked setting and JumboFrame/Packet (8Kb) on Ethernet Switch, then no need to touch Ethernet Switch.
