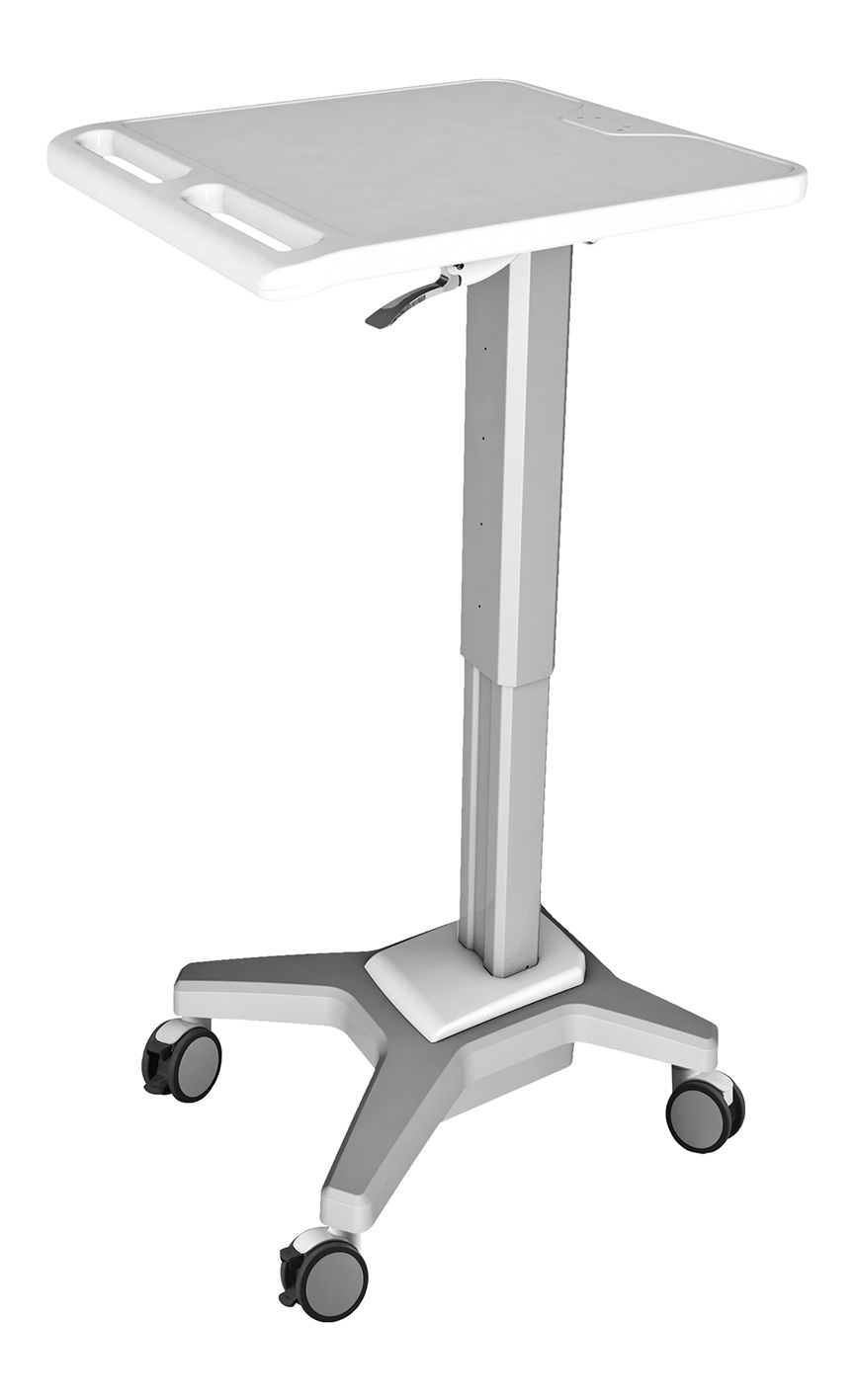

Simplified Mobile Computer Cart
- with Modularized Combination

CDS200-NEW support up to 10kgs
CDS200L-NEW support up to 18kgs

Aavara CDS200/ CDS200L are Simplified Mobile Computer Cart cart, featuring modularized combination with optional accessory based on what you exactly like to install.  It comes in CPU Holder/ Notebook Holder/ Keyboard Tray/ Lockable Medication Drawer and Height adjustable Monitor stand module. It designed with a manual lift to adjust the heights and working surface.

Height adjustment range up to 400 mm / 15.7", load capacity 18kgs for CDS200L & 10kgs for CDS200.  Furthermore it complies with anti-bacteria certificates that highly demand in healthcare industry.
It facilitates the workflow and enhances the max. efficiency with all fucntions in one stand-alone cart. Suitable for Healthcare, Workstation, Medical Care and wherever needs mobility of equipment in your working space.

Trolley Cart Main Page

Complete Spec

Overall Load Capacity: 1~10 kg /2.2~22.05 lbs
Net Weight: 16.2 kg /35.72 lbs



Combinated Accessories Expansion: Yes


Packaged Dimension:

Dim.: 76x73x28.3cm


Features

Tilt: -5° ~ +25°
Pivot: 360°
ExperTorque™ Technology: YES
(Torque easy adjustment hinged by monitor weight)

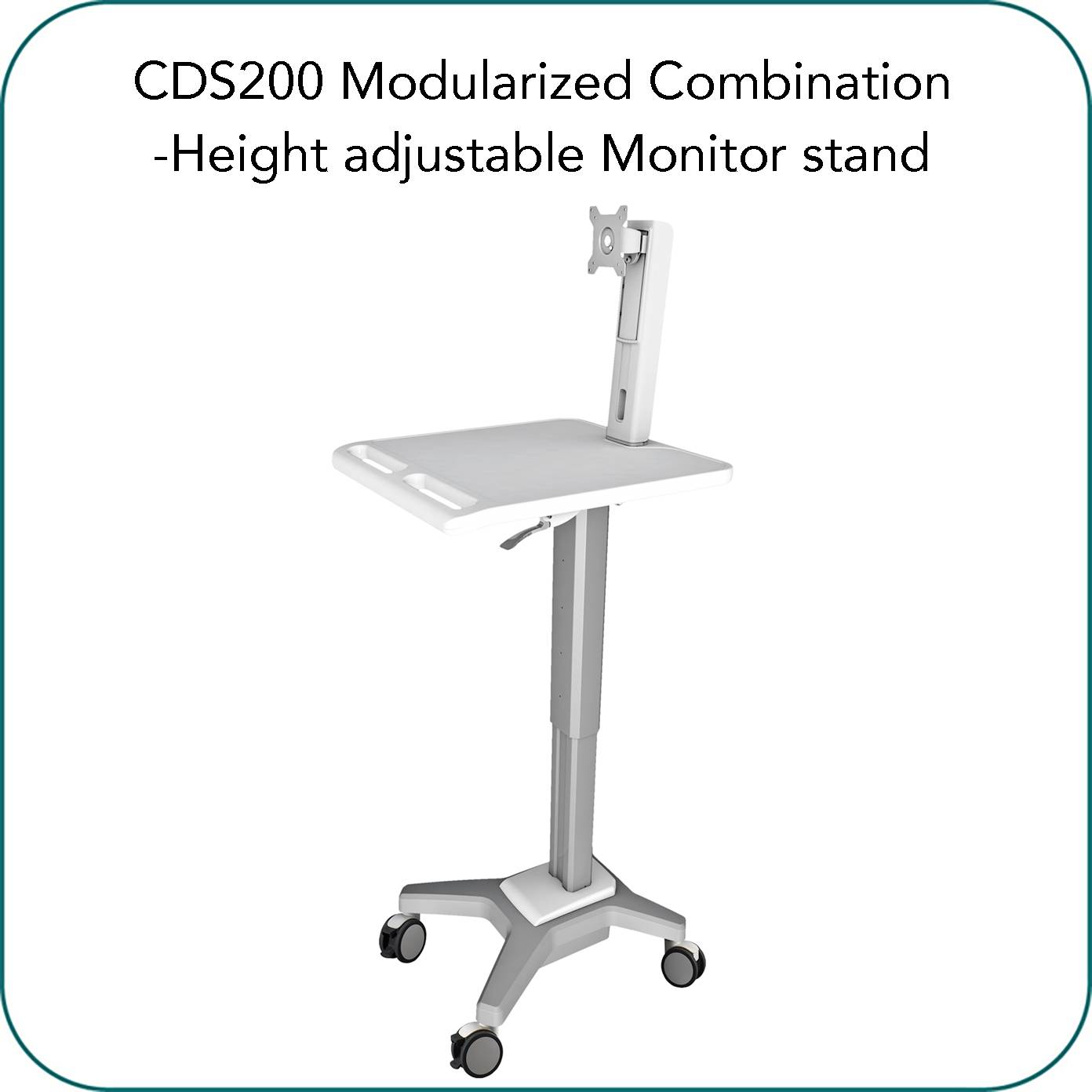

Display Support - Optional accessory

VESA: 100x100mm / 75x75mm
Display Type: Single Monitor Arm
Panel Size Support: 15"-24"/ 38-61cm
Max. Weight Load: 8kg / 17.6 lbs

Height Adjustment

Height Adjust Range:  130mm /5.12”
Tension Torque Adjustment: Yes
Cable Management: Yes



Open Workspace

Dimension: 517 x 406 mm
Max. Loading Capacity: 1~10 kg/2.2~22.05 lbs
Skidproof at edge: YES
Rear Handle: YES
Surface Coating: YES

Compartment-optional accessory

Net Weight: 3.71Kg /8.18Ibs
Support Max. Weight :2Kg/4.41lbs
Outer Dimension: 426 x 108.2 x 415.4 mm
Inner Dimension: 399 x 70 x 298 mm
Screw Type: M4
Material: Steel/Aluminum alloy/Plastic
Lock: Yes

Keyboard Tray& NB Holder-optional accessory

Keyboard Tray
Net Weight: 4.9 kg /10.8lbs
Support Max. Weight :1.5Kg/3.31Ibs
Dimension: 884.3 x 645 x 101 mm
Max.Working Space: 449 x 245 mm
Material: Steel/Plastic

NB Holder
Net Weight: 0.49 kg/1.08lbs
Support Max. Weight :1.5Kg/3.31Ibs
Max.Working Space: 449 x 245 mm
Material: Steel/Plastic

Caster

Caster No: 4 (front 2, Rare 2)
Locking / Brake: Front 2
Low Noise: Yes

LIFT

Lift Handle: Yes
Height Adjust Range:400 mm / 15.7"

Cerificate

RoHS/REACH Compliance: Yes
