PD3000

HDMI Video Tree Chain Cat5e Broadcaster

The PD3000 HD Video Tree Chain Cat5e/6 Broadcaster is designed to simplify cabling of digital signage and commercial installation.

Ultra high quality HDMI video with 7.1ch audio broadcasts to multiple TVs/Displays/Projectors at a wide spread area by Single Cat5e connection.
Key features include ultra high quality HDMI 1080p @ 60Hz / DVI 1920x1200 video with 7.1ch audio, 100M by single Cat5e point to point and a Plug-n-Play, easy installation. Each receiver can further daisy chain to two receivers, and the PD3000 also supports a 10 layer ‘daisy-chain’ for up to 1000M or even longer. Up to 100 TVs, displays or projectors can be supported.

PD3000 can combine Aavara PB5000 HDMI-Over-IP to meet all kind of complex layouts for deploying digital signage installations at Airports, Shopping Malls, Department Stores, Trans/Bus/Metro stations, Hotel, Healthcare and Institutions.

Manual Full Solution

HD Video Tree Chain Cat5e/6 Broadcaster features:

The PD3000 HD Video Tree Chain Cat5e/6 Broadcaster is designed to simplify cabling of digital signage and commercial installation.

1

1st Quality

2

2 Year Warranty

2

Receiver can further daisy chain to 2 x Receivers

10

Support 10 layers Daisy Chain for up to 1,200M

FEATURES

• Ultra High Quality HDMI 1080p @ 60Hz / DVI 1920x1200 video with 7.1ch Audio

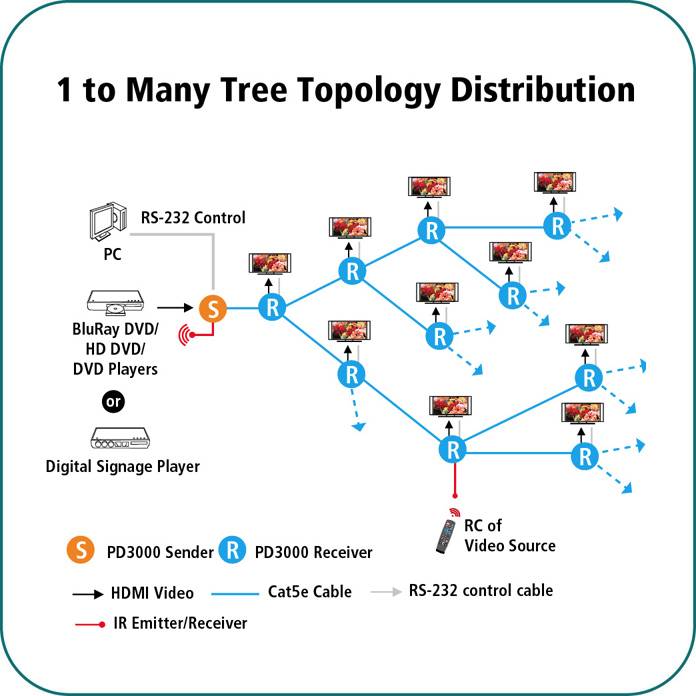

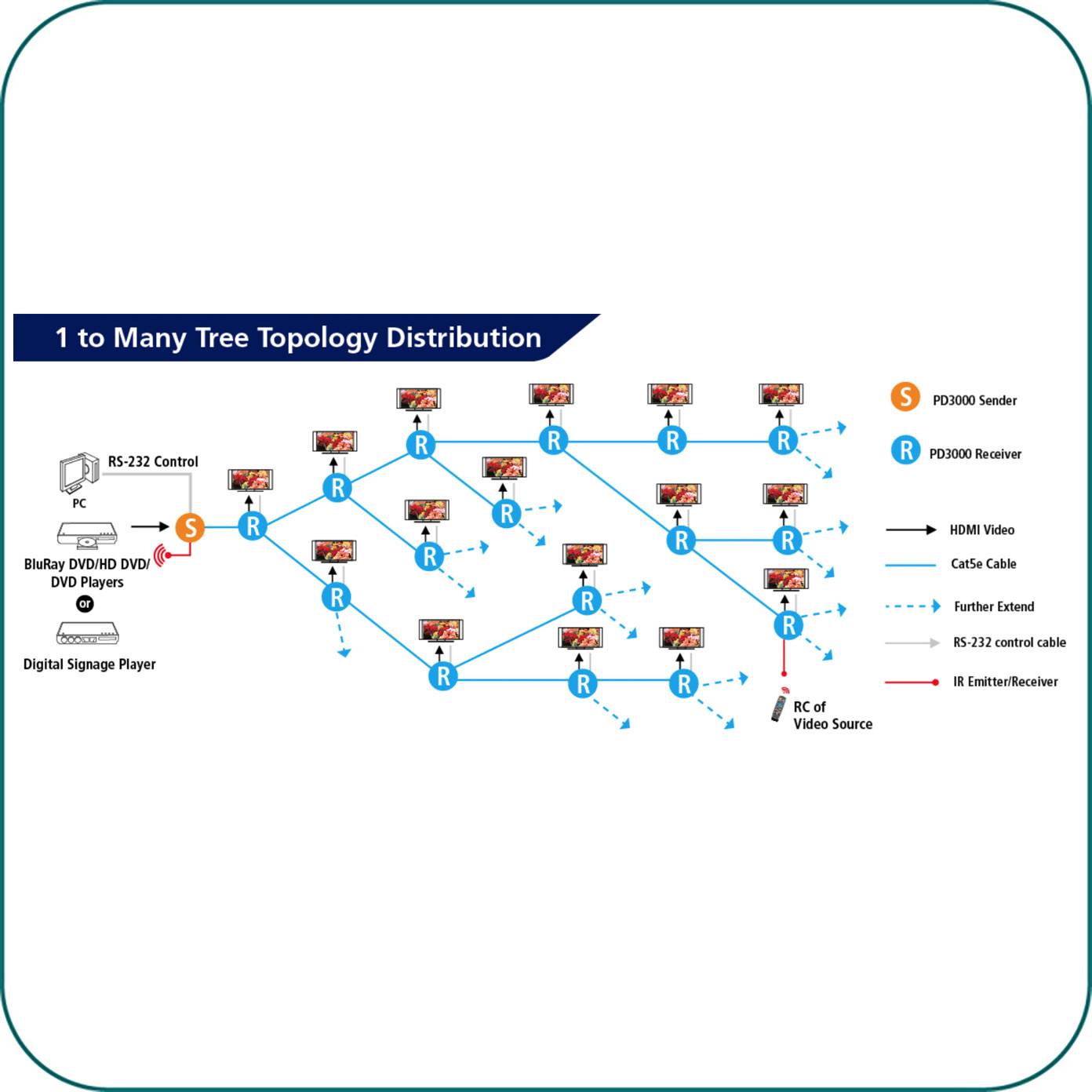

• 100M by Single Cat5e point to point and Receiver Tree Topology Daisy Chain
• Each Receiver can further daisy chain to 2 x Receivers
• Support 10 layers Daisy Chain for up to 1,200M or even longer

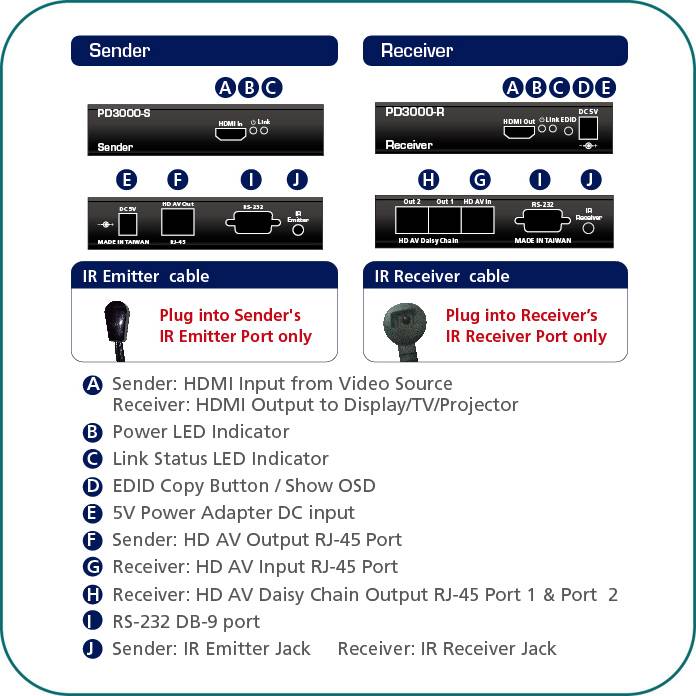

• RS-232 and IR Control Pass-thru to control Display or Video Source at remote site
• Support up to 100 TVs/Displays/Projectors broadcasting
• Plug n Play, Easy Installation

SPECS

• HDMI Spec.:v1.3 Compatible
• DVI Spec.:v1.0 Compatible
• HDCP Spec.:v1.1/ 1.2 Compatible
• HDMI Video Resolution:480p, 576p, 720p, 1080i/p
• HDMI PC Resolution:Up to1920x1200 @ 60Hz
• Cable Distance:Point to Point 100M by Cat5e
• Max. Display connected:Suggest under 100 displays
• Max. Daisy Chain Layer:Suggest under 10 layers
• IR Pass-Thru:20~60KHz Full Range
• RS-232 Pass-Thru:Up to 115,2000bps
• Power Adapter:DC 5V
• Power Consumption:5W
• Dimension (LxWxH):Sender: 120x122x27mm Receiver: 135x122x27mm
• Weight:325g
• Optional Accessory:1. Wall Mounting Kit (MK-100) 2. Mounting Kit Secured & locked with TV/Display Mount (MK-200)
• Package Content:HDMI Video Tree-Chain Broadcaster Sender or Receiver, 5V DC Adapter, Usermanual, IR Emitter or Receiver Cable
