Outside of the home, Aavara® can offer space saving elegance to public places such as schools, airports, shops, offices – anywhere that needs to view a screen but doesn’t want to compromise on style. Let Aavara® inspire you to maximise the space and style potential within your home and take you to a world of stylish living.
Features  Specifications  Installations  Downloads

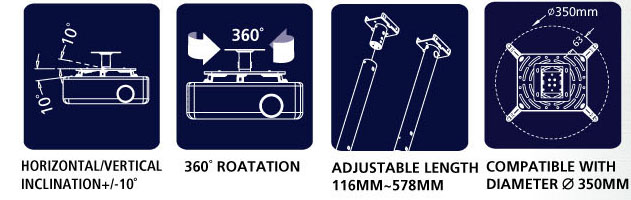

  PRODUCT FEATURES
•   Horizontal/vertical inclination +/-10º
•   Load capacity: 15kg/33lbs
•   Compatible with hole patterns up to ø350mm
•   360° Rotation
•   Adjustable length range from 116mm to 578mm
  PRODUCT SPECIFICATION
•   Compatibility:Compatible with projectors with hole patterns up to ø350mm
•   Loading Capacity:33lbs/15kg
•   Dimension (LxWxH):244x199x118mm
•   Tilt Angle:Up to +/-10º Tilt
•   Rotation:360º
•   Pipe Length:Adjustable length range from 116mm to 578mm
•   Material:Steel
•   Max. Mounting:ø350mm
•   Product Weight:1.9kg/4.2lbs
•   Screw Type:M3, M4, M5, M6
•   EAN Bar Code:4712818570113
•   Single Box DIM.:354x206x70mm
•   Dimension (LxWxH):244x199x118mm
•   Gross Weight:2.2kg/4.8lbs
•   Outside Carton DIM.:432x364x383mm
•   QTY per Carton:10 pcs
•   Gross Weight per Carton:24kg

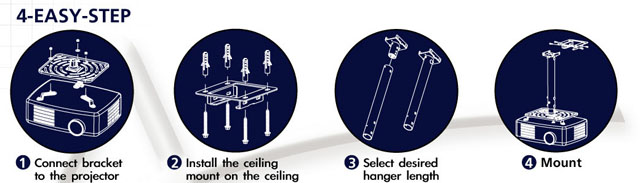

  INSTALLATIONS

  DOWNLOADS
  User Guide

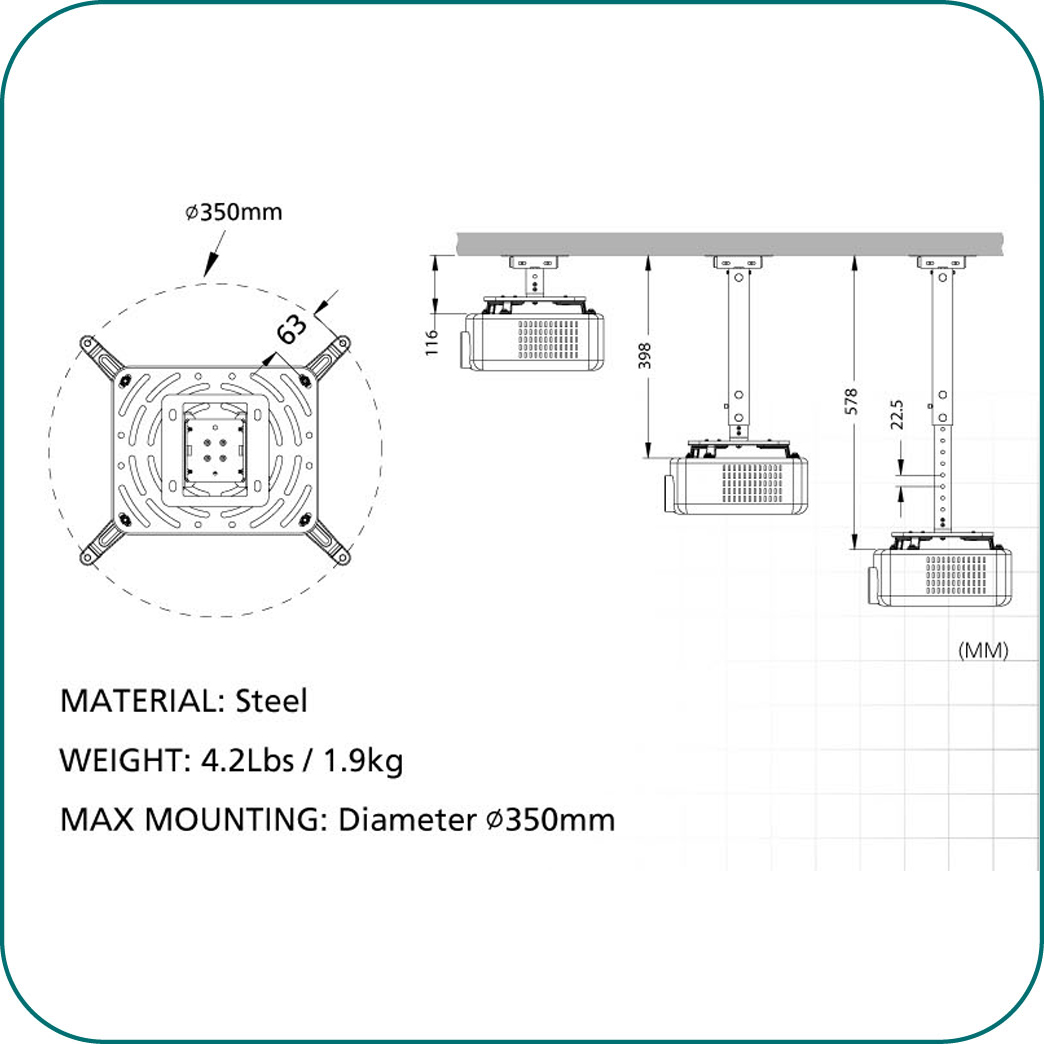

  Dimensional Illustrations

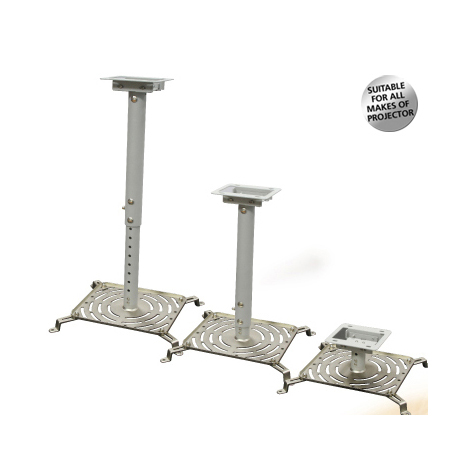

  Product Image
  Package
