EL4030
LCD/Plasma Wall support |
|
|
 |
Whether you need to arrange the space in your living room, family room, media room, bedroom or in fact anywhere where you want your home entertainment system or ganised and adding a stylish dimension, Aavara® is dedicated to making your desire a reality. Outside of the home, Aavara® can offer space saving elegance to public places such as schools, airports, shops, offices – anywhere that needs to view a screen but doesn’t want to compromise on style. |
 |
|
| Features Specifications Installations Downloads |
| PRODUCT FEATURES |
| • |
Ultra slim profile: 40mm |
| • |
Anti-Theft lock to prevent from being stolen |
| • |
Lateral shift allows ideal positioning |
| • |
Safety lock function to hold display in place |
| • |
Easy to install |
| • |
Heavy duty steel construction |
|
|
| |
| |
|
| PRODUCT SPECIFICATION |
| • |
Compatibility:Suitable for all makes of TV |
| • |
Flat Panel Size:26"-52"/ 66 - 132cm |
| • |
Loading Capacity:175lbs/80kg |
| • |

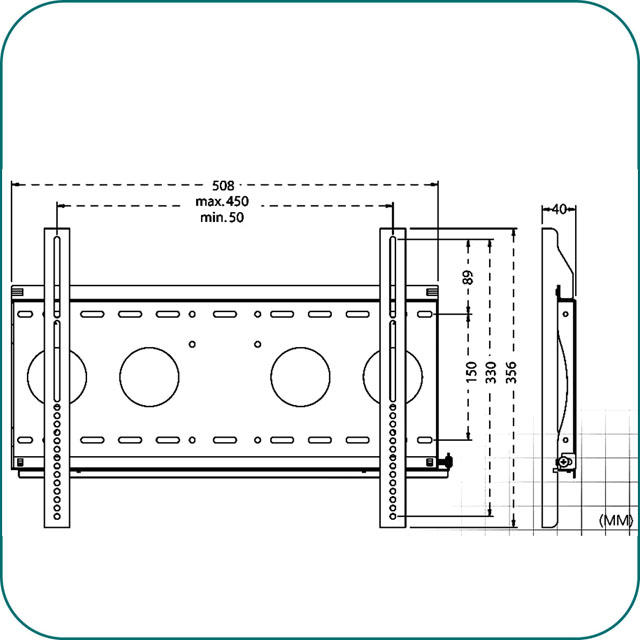

Dimension (LxWxH):508x356x40mm |
| • |
Profile from Wall:40mm |
| • |
Lateral Shift:Slided to the left or right min. 20mm from the center |
| • |
Safety Lock:Yes |
| • |
Anti-Theft Lock:Yes |
| • |
Material:Steel |
| • |
Max. Mounting (HxV):450x330mm |
| • |
Product Weight:2.8kg/6.2lbs |
| • |
Screw Type:M6,M5,M4 |
| • |
EAN Bar Code:4712818570038 |
| • |
Single Box DIM.:556x245x54mm |
| • |
Gross Weight:3.3kg/7.2lbs |
| • |
Outside Carton DIM.:574x289x274mm |
| • |
QTY per Carton:5 pcs |
| • |
Gross Weight per Carton:17kg |
|
|
|
| INSTALLATIONS |
| |
 |
|
|
|
|
| |
 |
|
