  PW120
Short throw Projector Mount

Aavara PW120 Wall Boom Universal Projector Mounts designed for not only Short Throw Projector but also regular range projector which can accommodates all types of projectors with up to a 1250mm projector throw distance.

Unique Quick Attach and Detach Mount Plate design which will save a lot of installing and adjustment time. All cables run neatly through the boom and are concealed behind the wall plate.

- Interactive whiteboard market
- Educational market
- Government market
- Home Theater & Gaming market
Features  Specifications  Installations  Downloads

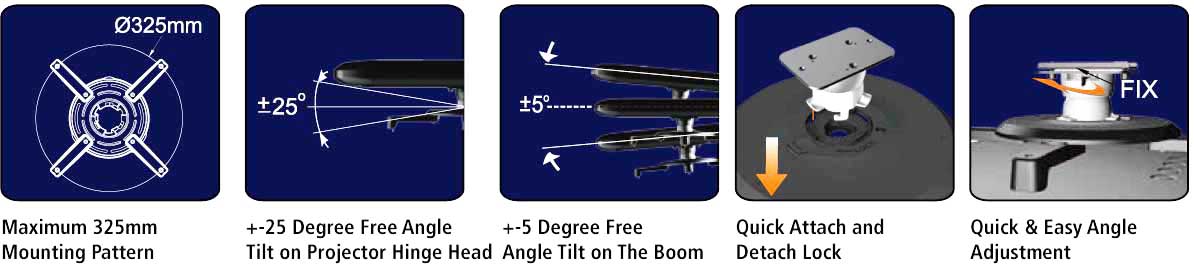

  PRODUCT FEATURES
•   Horizontal/vertical inclination +/-25º on Mount Plate, +-5º on Pillar
•   Load capacity: 15kg/33lbs
•   Compatible with hole patterns up to ø325mm
•   360° Rotation
•   Maximum Throw Length range up to 1250mm
•   Quick Attach and Detach Mount Plate design
  PRODUCT SPECIFICATION
•   Compatibility:Compatible with projectors with hole patterns up to ø325mm
•   Loading Capacity:33lbs/15kg
•   Dimension:1375.5x190x380mm
•   Tilt Angle:Up to +/-25º Tilt on Mount Plate, +/-5º on Pillar
•   Rotation:360º
•   Max. Throw Length:1250 mm
•   Material:Aluminum
•   Max. Mounting:ø325mm
•   Product Weight:6.6kg/14.5lbs
•   Screw Type:M3, M4, M5, M6
•   EAN Bar Code:4712818570595
•   Single Box Dim.:1352x243x216mm
•   Gross Weight:7.95kg/17.53lb

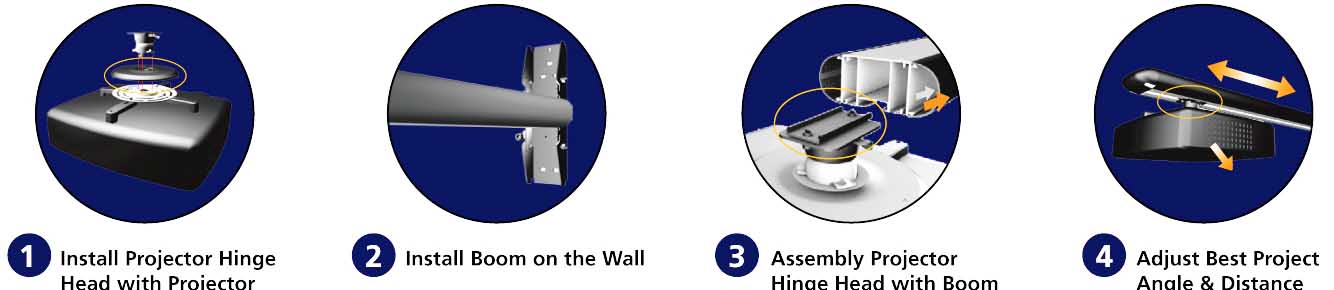

  INSTALLATIONS

  DOWNLOADS
  User Guide

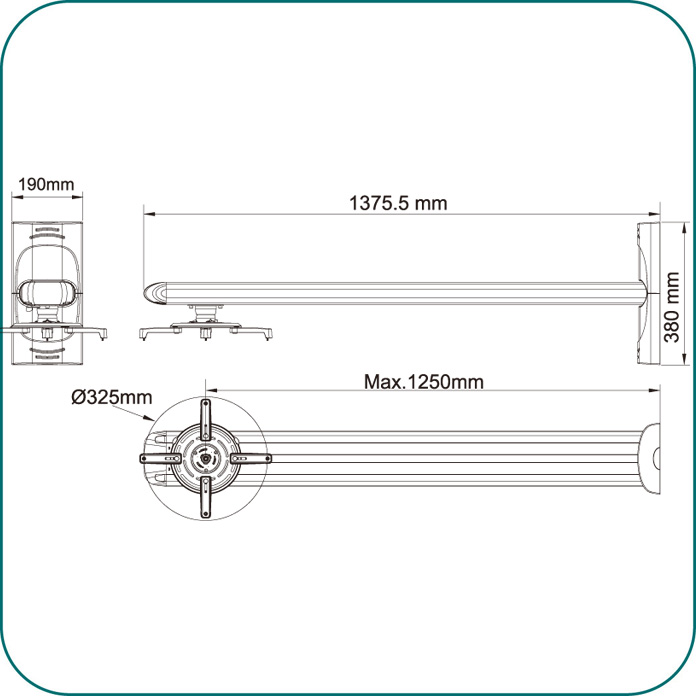

  Dimensional Illustrations

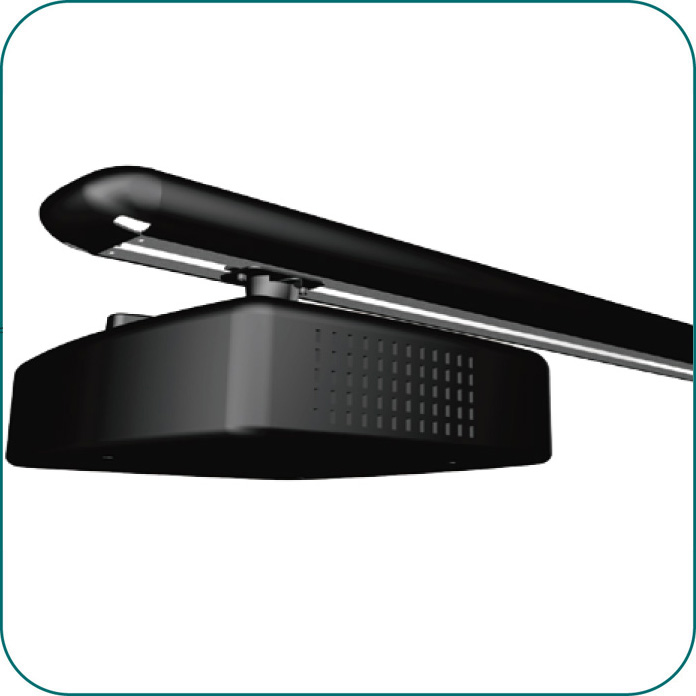

  Product Image
