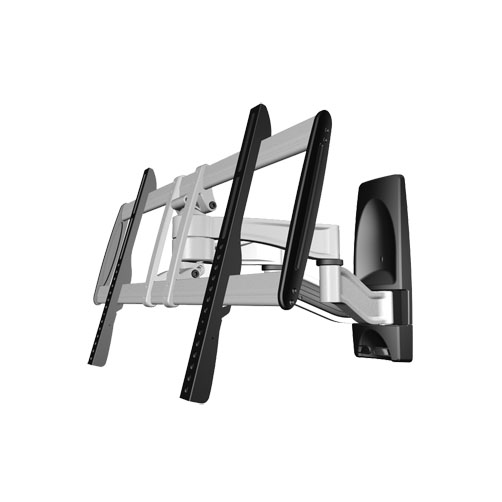

A6041-NEW
LCD/Plasma 5 Joint Wall Support |
|
|
 |
Aavara® new released wall support of A6041 designed with 5 Pivot points with 4 arms, allowed wide angle of Swivel and tilt featuring Expertorque™ technology hinged by monitor weight.
It fits larger-sized displays up to 52 inch with heavy duty Aluminum alloy construction as well as smart cable management design, giving a decor look at your home theater. |
 |
|
| Features Specifications Installations Downloads |

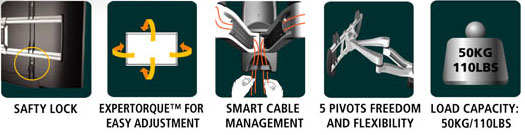

| PRODUCT FEATURES |
| • |
5 Pivot-pointed arms for optimal adjustment of free angles in your display |
| • |
+/-15 degree free tilt angle |
| • |
+/-60 degree free swivel angle |
| • |
Safety lock function to hold display in place |
| • |
Smart Cable Management system |
| • |
Heavy duty Aluminum Alloy construction |
| • |
ExperTorque™ design for easy adjustment hinged by display |
| • |
VESA Compatible |
|
|
| |
| |
|
| PRODUCT SPECIFICATION |
| • |
Compatibility:Suitable for all makes of TV |
| • |
Flat Panel Size:26''-52''/66-132cm |
| • |
Loading Capacity:50kg/110lbs |
| • |

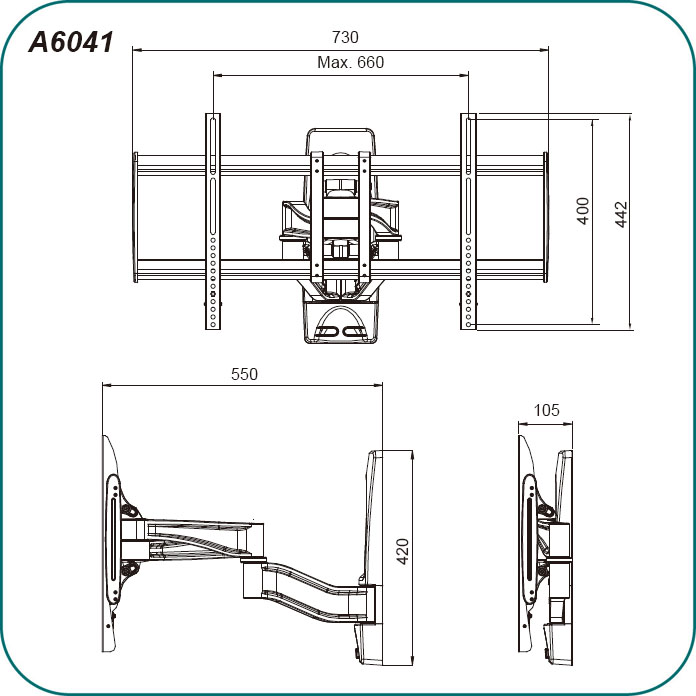

Dimension(LxWxH):670*422*550mm |
| • |
Tilt Angle:+/-15 degree |
| • |
Swivel Angle:+/-60 degree |
| • |
Profile from Wall:Max. 550mm |
| • |
Safety Lock:Yes |
| • |
Extended arm provided:4 Arms |
| • |
Smart Cable Management:Yes |
| • |
Material:Steel/ Aluminum Alloy |
| • |
Max. Mounting:660x400mm |
| • |
Product Weight:9.9kg/21.8lbs |
| • |
Screw Type:M8,M6,M5,M4 |
| • |
EAN Bar Code:4712818570298 |
|
|
|

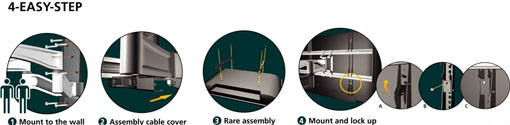

| INSTALLATIONS |
| |
 |
|
|
|
|
| |
 |
|
