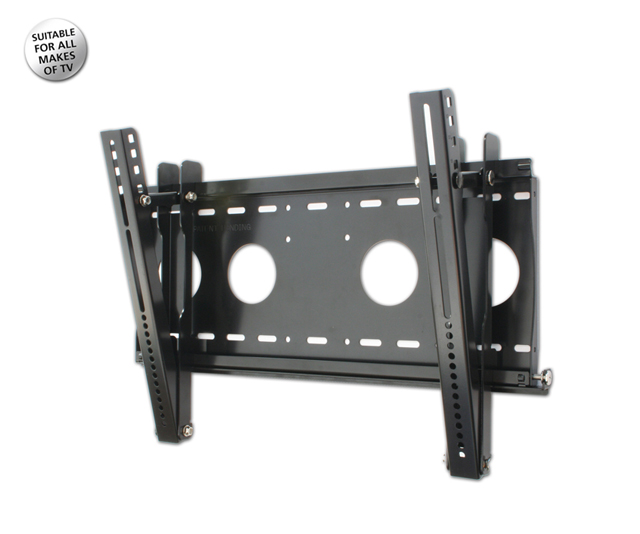

EF4030
LCD/Plasma Wall support |
|
|
 |
With modern styling inspired by the Scandinavian spirit of simplicity and robustness, the elegant design enhances the décor of your living room, home cinema, family room or wherever you want to organise your home entertainment system but without compromising on style. Aavara® is a word derived from the Finnish word avara meaning expansiveness and it is this sense of space and possibility that has been captured in the wide product range. Let Aavara® bring the elegance and sophistication you deserve to your living space. |
 |
|
| Features Specifications Installations Downloads |
| PRODUCT FEATURES |
| • |

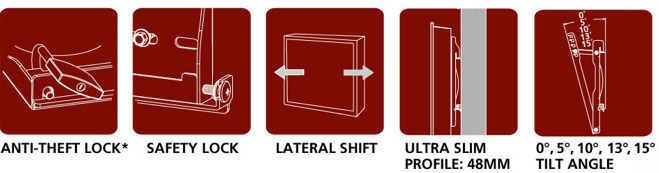

0º, 5º, 10º, 13º, 15º tilt for the ideal viewing angle |
| • |
Heavy duty steel construction |
| • |
Safety lock function to hold display in place |
| • |
Lateral shift allows ideal positioning |
| • |
Ultra slim profile |
| • |
Easy to install |
|
|
| |
| |
|
| PRODUCT SPECIFICATION |
| • |
Compatibility:Suitable for all makes of TV |
| • |
Flat Panel Size:26"-52"/ 66 - 132cm |
| • |
Loading Capacity:175lbs/80kg |
| • |

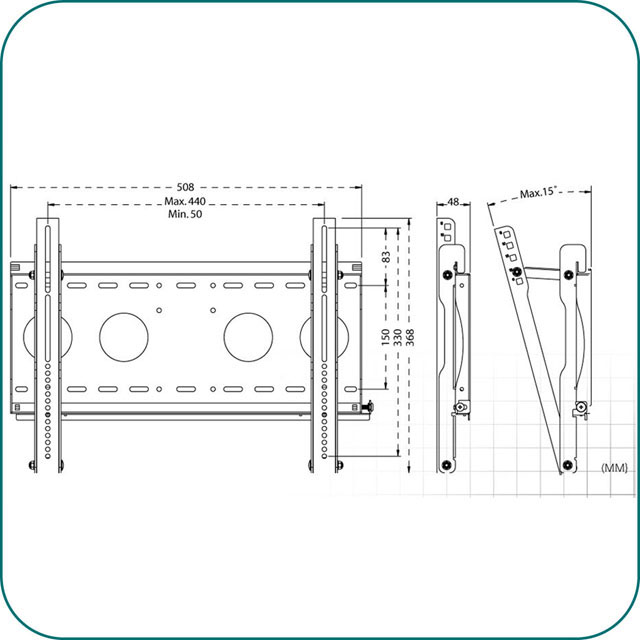

Dimension (LxWxH):788x490x45mm |
| • |
Tilt Angle:0°, 5°, 10°, 13°, 15° tilt angle |
| • |
Profile from Wall:45mm |
| • |
Lateral Shift:Slided to the left or right min. 20mm from the center |
| • |
Safety Lock:Yes |
| • |
Anti-Theft Lock:Yes |
| • |
Material:Steel |
| • |
Max. Mounting (HxV):440x330mm |
| • |
Product Weight:3.9kg/8.6lbs |
| • |
Screw Type:M6,M5,M4 |
| • |
EAN Bar Code:4712818570045 |
| • |
Single Box DIM.:556x245x54mm |
| • |
Gross Weight:4.4kg/9.7lbs |
| • |
Outside Carton DIM.:574x289x274mm |
| • |
QTY per Carton:5 pcs |
| • |
Gross Weight per Carton:23.5kg |
|
|
|

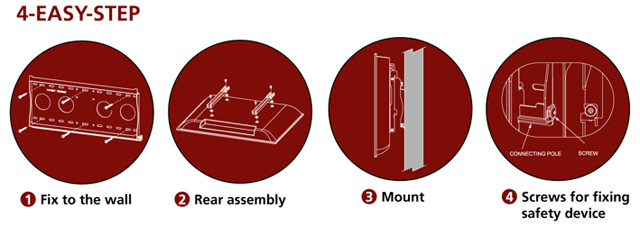

| INSTALLATIONS |
| |
 |
|
|
|
|
| |
 |
|
