  TC210-NEW

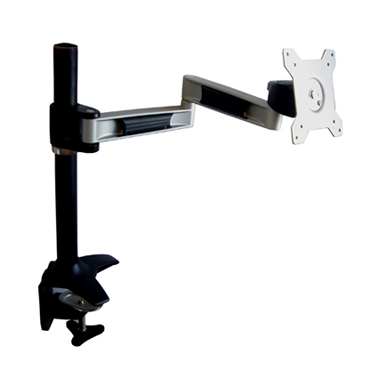

LCD Monitor Arm-Clamp Base

Aavara® LCD Monitor stand Clamp Base with 3 Pivot pints- is one of Aavara® newest models supporting up to 24 inch wide LCD monitor with tilt and swivel functions.

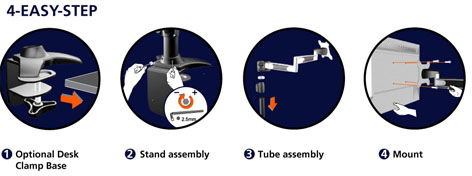

By latest ExperTorque™ technology, displays can be easily tilted hinged by monitor weight. Smart cable management system & space saving design featuring 4-Easy-Step installation and makes it work effectively with your POS, Kiosk applications.
Features  Specifications  Installations  Downloads
  PRODUCT FEATURES
  LCD Monitor Arm -Clamp Base with 3 Pivot points Arm design for optimized solution of Multi-functions desk stand
  +/-20º free angle tilt for the ideal viewing position
  +/-20º free angle swivel for the ideal viewing position
  Lightweight durable aluminium alloy construction
  ExperTorque™ design for easy adjustment hinged by display
  Rotate Clockwise 90 Degree
  Smart Cable Management System
  Length Adjustment & optional extended Tube allowed
  PRODUCT SPECIFICATION
  Compatibility:Suitable for all makes of monitors
  Flat Panel Size:15''~24''/ 38~61cm for each display
  Loading Capacity:6kg/13.3lbs of each display
  Dimension:465.5*158*370mm
  Tilt Angle:+/- 20 degree
  Swivel Angle:+/- 20 degree
  ExperTorque™ Technology:ExperTorque™ design for easy adjustment hinged by monitor weight
  Material:Aluminum alloy
  Max. Mounting:100x100/ 75x75mm
  Product Weight:2.96kg/6.5lbs
  Cable Management:Smart Cable Management System makes messy cables in good order
  Screw Type:M4
  EAN Bar Code:4712818570373
  Single Box DIM.:602*218*143mm
  Q'TY per Carton:3pcs

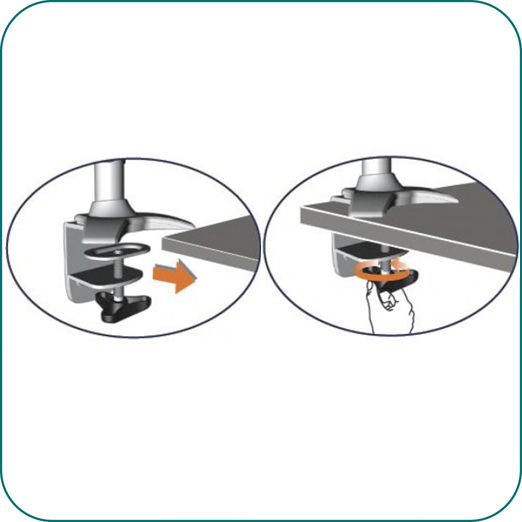

  INSTALLATIONS

  DOWNLOADS
  User Guide

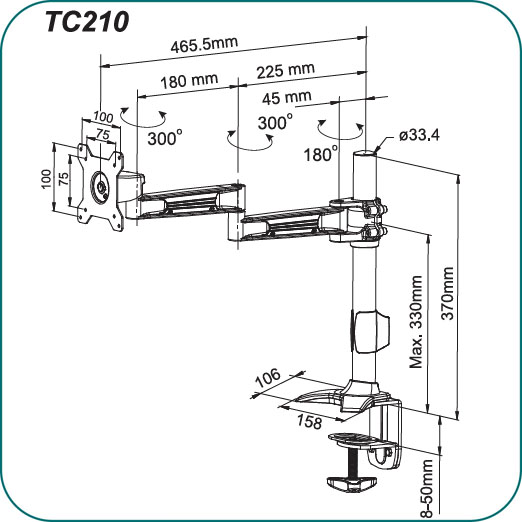

  Dimensional Illustrations
  Product Image
  Package
