  TC022-NEW

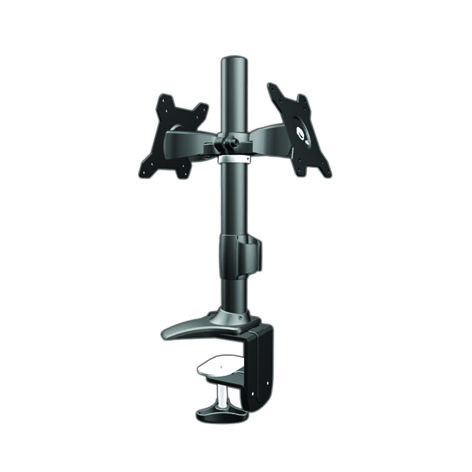

Dual LCD Monitor Stand-Clamp Base

Aavara® Dual-LCD Monitor stand-back-to-back Clamp Base is one of Aavara® newest models supporting up to 24 inch wide LCD monitor with tilt and swivel functions.

By latest ExperTorque™ technology, displays can be easily tilted hinged by monitor weight. Smart cable management system & space saving design featuring 4-Easy-Step installation and makes it work effectively with your POS, Kiosk applications.
Features  Specifications  Installations  Downloads
  PRODUCT FEATURES
•   LCD Monitor Stand -Clamp Base with 2 counter display design for optimized solution of Multi-functions desk stand
•   +/-20º free angle tilt for the ideal viewing position
•   +/-20º free angle swivel for the ideal viewing position
•   Lightweight durable aluminium alloy construction
•   Rotate Clockwise 90 Degree
•   Smart Cable Management System
•   Length Adjustment & optional extended Tube allowed
  PRODUCT SPECIFICATION
•   Compatibility:Suitable for all makes of monitors
•   Flat Panel Size:15''~24''/ 38~61cm for each display
•   Loading Capacity:8kg/17.6lbs of each display
•   Dimension:200*158*470mm
•   Tilt Angle:+/- 20 degree
•   Swivel Angle:+/- 20 degree
•   ExperTorque™ Technology:ExperTorque™ design for easy adjustment hinged by monitor weight
•   Max. Mounting:100x100/ 75x75mm
•   Product Weight:2.96kg/6.5lbs
•   Smart Cable Management:Smart Cable Management System makes messy cables in good order
•   EAN Bar Code:4712818570335
•   Single Box DIM.:602*218*143mm
•   Q'TY per Carton:3pcs

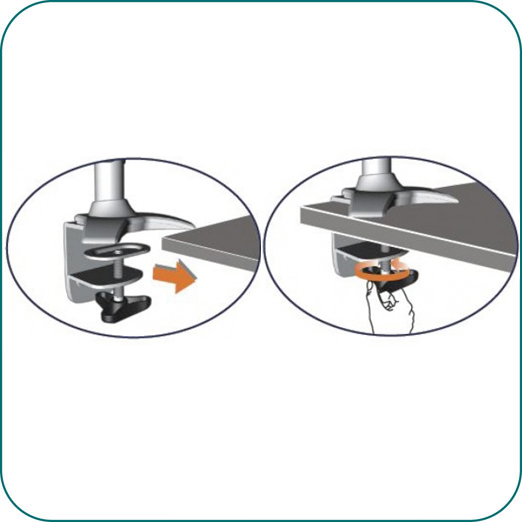

  INSTALLATIONS

  DOWNLOADS
  User Guide

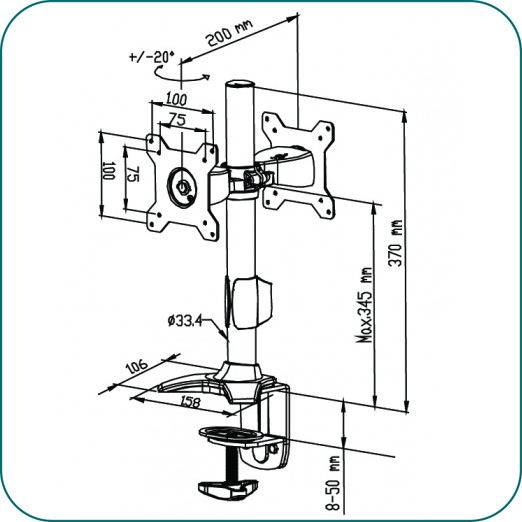

  Dimensional Illustrations
  Product Image
  Package
