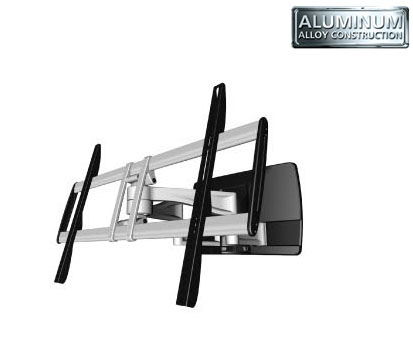

  A8050
LCD/Plasma Support

Aavara® new released wall support of A8050 designed with 5 Pivot points with 4 arms, allowed wide angle of Swivel and tilt featuring Expertorque™ technology hinged by monitor weight.

It fits larger-sized displays up to 65 inch with heavy duty Aluminum alloy construction as well as smart cable management design, giving a decor look at your home theater.
Features  Specifications  Installations  Downloads

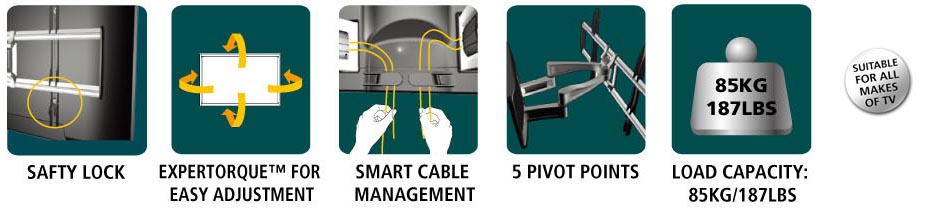

  PRODUCT FEATURES
•   5 Pivot-pointed arms for optimal adjustment of free angles in your display
•   +/-15 degree free tilt angle
•   +/-60 degree free swivel angle
•   Safety lock function to hold display in place
•   Smart Cable Management system
•   Heavy duty Aluminum Alloy construction
•   ExperTorque™ design for easy adjustment hinged by display
•   VESA Compatible
  PRODUCT SPECIFICATION
•   Compatibility:Suitable for all makes of TV
•   Flat Panel Size:32''-62''/94-157cm
•   Loading Capacity:187lbs/85kg
•   Dimension(LxWxH):869.76x524x105.05mm
•   Tilt Angle:+/-15 degree
•   Swivel Angle:+/-60 degree
•   Profile from Wall:Max. 550mm
•   Safety Lock:Yes
•   Extended arm provided:4 Arms
•   Smart Cable Management:Yes
•   Material:Steel/ Aluminum Alloy
•   Max. Mounting (HxV):810x500mm
•   Product Weight:15.4kg/34lbs
•   Screw Type:M8,M6,M5,M4
•   EAN bar code:4712818570175

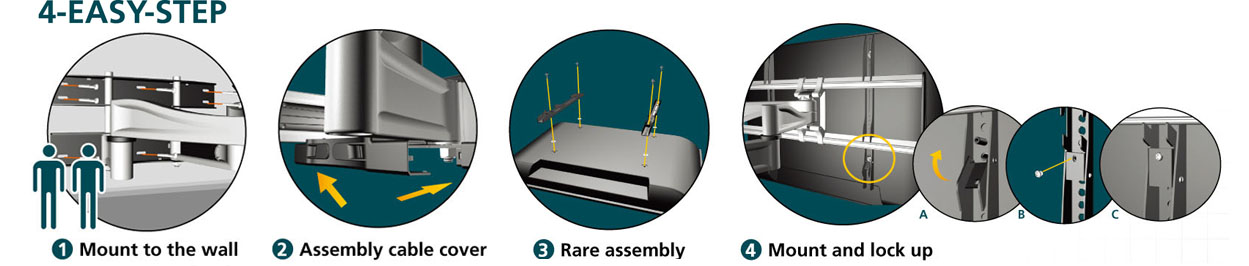

  INSTALLATIONS

  DOWNLOADS
  User Guide

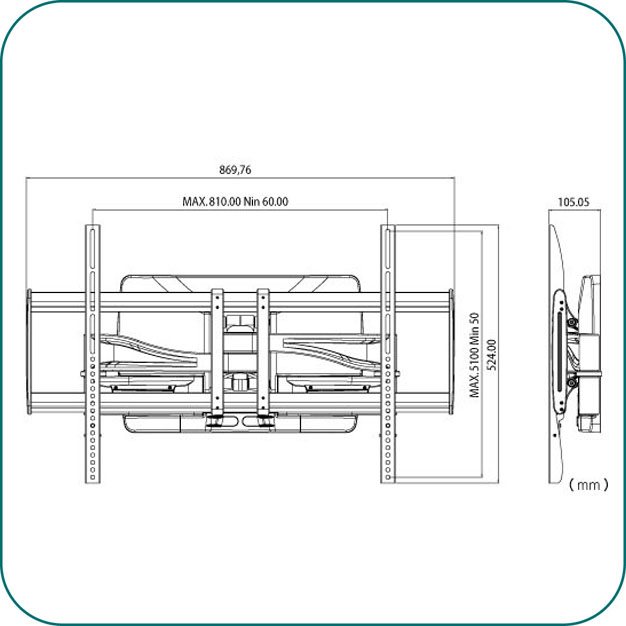

  Dimensional Illustrations
  Product Image
  Package
