EE8050
LCD/Plasma Support |
|
|
 |
Aavara® EE series is a breakthrough of Elegant wall mount bracket featuring thumb-rolling design. With effortless flip of your fingers, you can easily tilt up and down +/- 15 degree of your display to the desired position all the time without compromising on heavy display weight.
With LCD TV becoming slimmer and larger in size, it supports up to 65 inch to fulfill larger displays released by most of famous TV brands. |
 |
|
| Features Specifications Installations Downloads |
| PRODUCT FEATURES |
| • |
+/-0º~15º free thumb-rolling function by a flip of fingertips |
| • |
Heavy duty steel construction |
| • |
Safety lock function to hold display in place |
| • |
Lateral shift allows ideal positioning |
| • |
Anti-Theft lock to prevent from being stolen |
| • |
Easy to install |
|
|
| |
| |
|
| PRODUCT SPECIFICATION |
| • |
Compatibility:Suitable for all makes of TV |
| • |
Flat Panel Size:32"-65"/ 81 - 165cm |
| • |
Loading Capacity:175lbs/80kg |
| • |

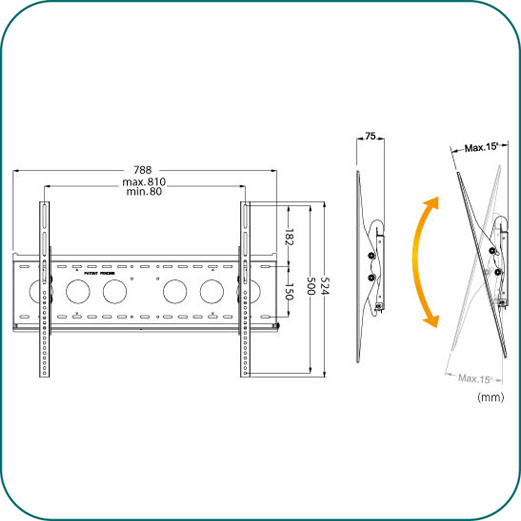

Dimension:788x524x75mm |
| • |
Tilt Angle:+/- 15 degree |
| • |
Profile from Wall:75mm |
| • |
Lateral Shift:Slided to the left or right min. 20mm from the center |
| • |
Safety Lock:Yes |
| • |
Anti-Theft Lock:Yes |
| • |
Material:Steel |
| • |
Max. Mounting (HxV):810x500mm |
| • |
Product Weight:5.2kg/11.4lbs |
| • |
Screw Type:M8,M6,M5,M4 |
| • |
EAN Bar Code:4712818570250 |
| • |
Single Box DIM.:836x245x54mm |
| • |
Gross Weight:5.9kg/13lbs |
| • |
Outside Carton DIM.:854x289x274mm |
| • |
QTY per Carton:5 pcs |
| • |
Gross Weight per Carton:31kg |
|
|
|
| INSTALLATIONS |
| |
 |
|
|
|
|
| |
 |
|
