R9250+EF2020
LCD Ceiling support |
|
|
 |
Aavara® offers the optimal ceiling bracket for Digital signage(public display) solution as now the most surprising growth of dynamic display network, which proofing the most creative ways to grab people attention.
From middle to larger size narrowcasting in indoor and outdoor environment, Aavara® ceiling bracket features heavy duty construction, double security functions and flexible tube length adjustment, it completely fulfills retail dynamic flat display needs.
Digital Signage Market executed as:
Tradeshows and Trade Show Rental
Electronic/Dynamic Digital Displays
Shopping Mall advertising
Museums
Movie Theatre Advertising
Airport Terminals
Retail Banking
Call Centers / Control Rooms
Institutional / Hospitality TV |
 |
|
| Features Specifications Installations Downloads |
| PRODUCT FEATURES |
| • |

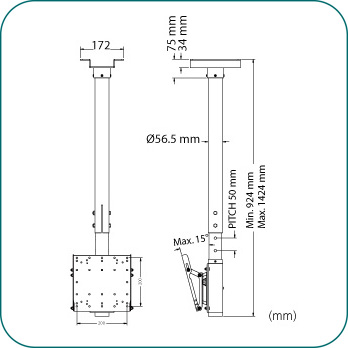

Flexible height adjustment: 925~1,425mm |
| • |
Up to 15º tilt for the ideal viewing angle |
| • |
Left, right turning angle: 360º |
| • |
Safety lock function to hold display in place |
| • |
Cable hiding system |
| • |
Optimal ceiling solution for Digital Signage |
|
|
| |
| |
|
| PRODUCT SPECIFICATION |
| • |
Compatibility:Suitable for all makes of TV |
| • |
Flat Panel Size:22"-45"/ 56 - 114cm |
| • |
Loading Capacity:60kg/132lbs |
| • |
Pipe Length:924mm~1,424mm in 50mm increment |
| • |
Body Dimension:508x368x45mm |
| • |
Tilt Angle:0º~15º free angle |
| • |
Safety Lock:Yes |
| • |
Material:Steel |
| • |
Max. Mounting (HxV):200x200/200x100/100x100mm |
| • |
EAN Bar Code:EF2020: 4712818570021,
R9250: 4712818570090 |
| • |
Single Box DIM.:EF2020: 267x244x55mm
R9250: 917x239x83mm |
| • |
QTY per Carton:EF2020:10 pcs,
R9250:4 pcs |
| • |
Gross Weight:EF2020:2.3kg/5lbs,
R9250:7kg/15.4lbs |
|
|
|

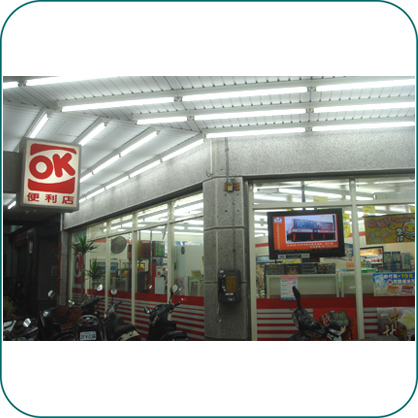

| INSTALLATIONS |
| |
 |
|
|
|
|
| |
 |
|
