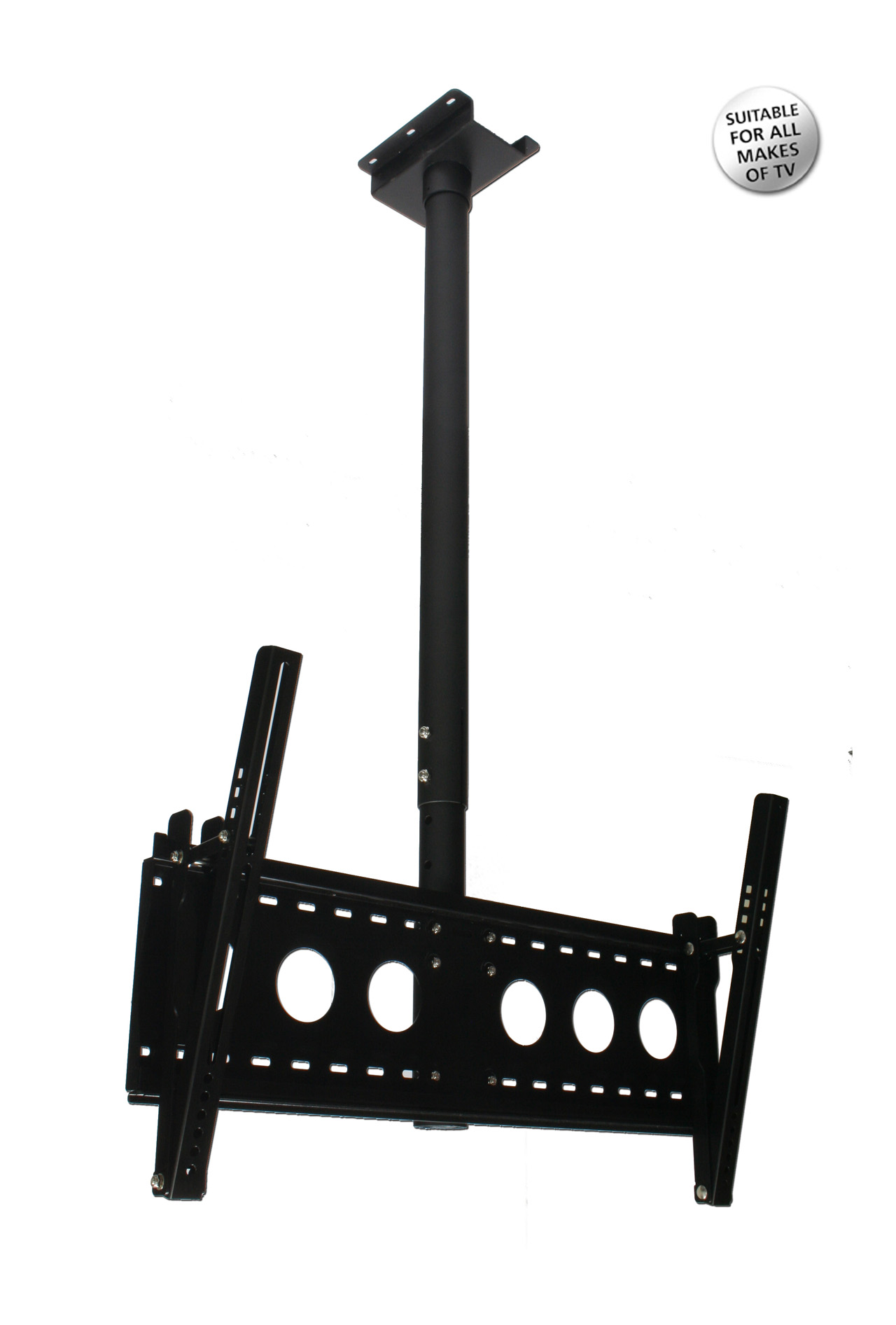

R9250+EF6540
LCD/Plasma Ceiling support |
|
|
 |
Aavara® offers the optimal ceiling bracket for Digital signage(public display) solution as now the most surprising growth of dynamic display network, which proofing the most creative ways to grab people attention.
From middle to larger size narrowcasting in indoor and outdoor environment, Aavara® ceiling bracket features heavy duty construction, double security functions and flexible tube length adjustment, it completely fulfills retail dynamic flat display needs.
Digital Signage Market executed as:
POS (Point of Sale) Advertising
Corporate Conference Rooms/Board Rooms
Public Transportation
Flight Information Displays (FIDs)
Railway/Bus Terminal Displays
Bus Terminal Displays
Electronic Menu Boards |
 |
|
| Features Specifications Installations Downloads |

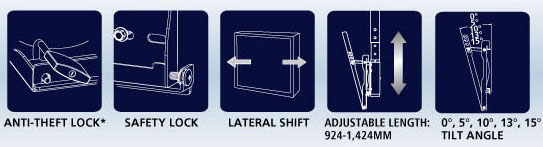

| PRODUCT FEATURES |
| • |
Flexible height adjustment: 925~1,425mm |
| • |
Up to 15º tilt for the ideal viewing angle |
| • |
Left, right turning angle: 360º |
| • |
Safety lock function to hold display in place |
| • |
Cable hiding system |
| • |
Pipe increments: 50mm |
| • |
Optimal ceiling solution for Digital Signage
|
|
|
| |
| |
|

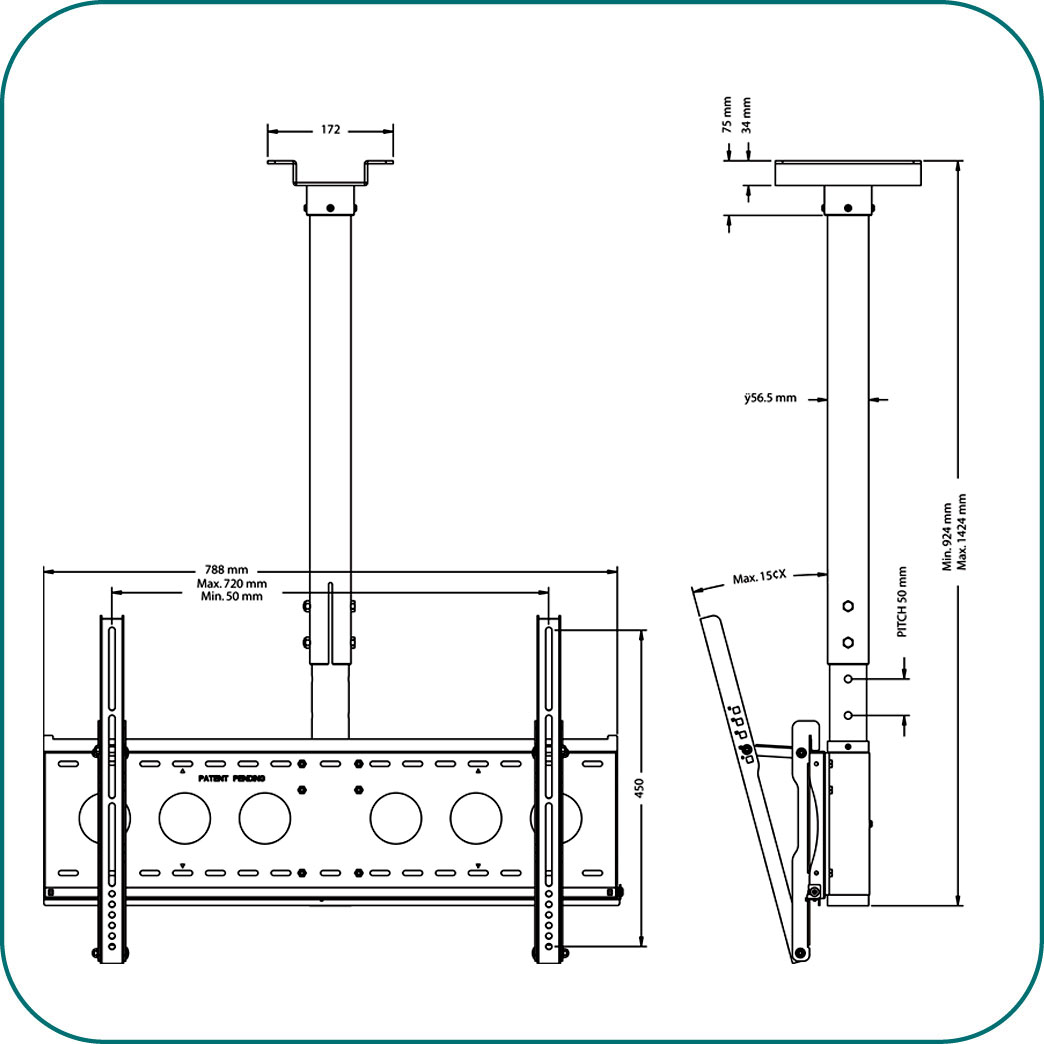

| PRODUCT SPECIFICATION |
| • |
Compatibility:Suitable for all makes of TV |
| • |
Flat Panel Size:32" - 60" / 81 - 152cm |
| • |
Loading Capacity:162lbs/60kg |
| • |
Pipe Length:924mm~1,424mm in 50mm increments |
| • |
Body Dimension:788x490x45mm |
| • |
Tilt Angle:0º, 5º, 10º, 13º, 15º |
| • |
Safety Lock:Yes |
| • |
Anti-Theft Lock:Yes |
| • |
Material:Steel |
| • |
Max. Mounting (HxV):720x450mm |
| • |
Screw Type:M8,M6,M5,M4 |
| • |
EAN Bar Code:EF6540: 4712818570069, R9250: 4712818570090
|
| • |
Single Box DIM.:EF6540: 836*245*54, R9250: 917*239*83
|
| • |
QTY per Carton:EF6540:5 pcs, R9250:4 pcs
|
| • |
Gross Weight per Carton:EF6540: 31kg/68.3lb, R9250:29kg/64lbs
|
| • |
Pipe Item Name:R9250 |
|
|
|

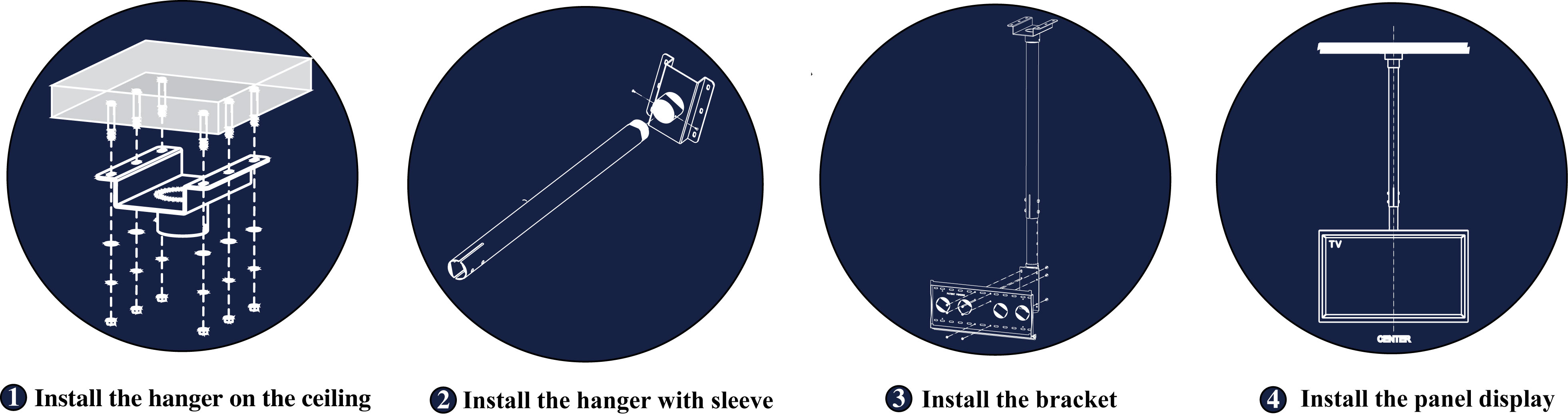

| INSTALLATIONS |
| |
 |
|
|
|
|
| |
 |
|
