  SUPER PM4X2A-NEW
Home HDMI Media Matrix

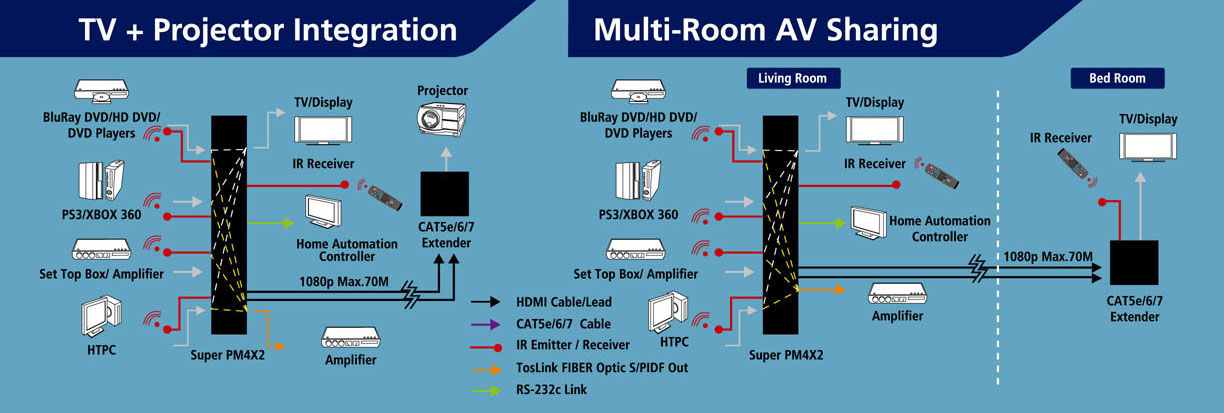

The Super PM4X2A 4x2 Home HDMI Media Matrix fulfills consumer demand for integrating home theatre projectors/TV or support multi-room high definition entertainment sharing.

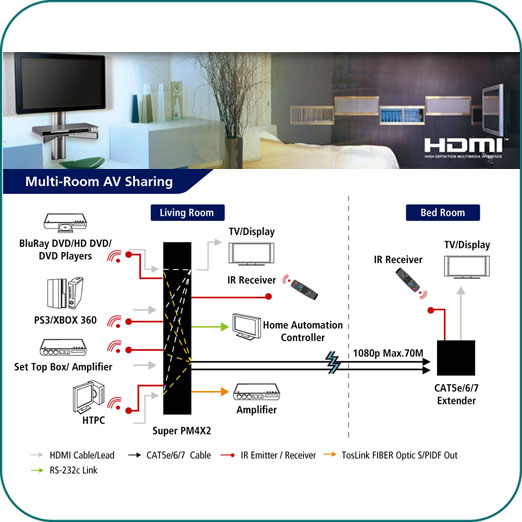

The low cost CAT5e/6 solution, for projector installation in living rooms, can also extend the video equipment to connected TV’s in other rooms so there is no need to buy duplicate equipment. The customer can also select the video output of their choice from any of 4 HDMI input and full range IR Pass-Thru, to control video devices. Built-in EDID memory with the Super PM4X2A will also work smoothly with the Windows 7 Media Center HTPC whilst other benefits include TOSLINK Optic S/PDIF output to ensure the best amplifier connection and a RS-232 control for PC or Home automation. Super PM4X2A, has been optimised to meet even the highest interior design details as the user can hide all the video devices in a cabinet, only showing a small IR receiver for control purposes.
Features  Specifications  Installations  Downloads
  PRODUCT FEATURES
•   Home HDMI Media Matrix HDMI 4 In 2 Out Matrix with CAT5e/6/7 Extender and IR Pass Thru
•   Designed for fulfilling consumer demand on integrating home theater projector/TV in living room or support multi-rooms HD entertainment
•   One of HDMI outputs is integrated with a CAT5e/6/7 extender which provided 70M 1080p uncompressed video transmission. Cost saving from replacing expensive long HDMI cable
•   No need to buy duplicate video equipments for both living room and bed room. Freely choose video input from any of 4 HDMI inputs
•   Full range IR Pass-Thru to control video devices from both local HDMI output and rear HDMI extender output
•   By built-in EDID memory to co-work with Windows® 7 Media Center HTPC smoothly
•   Optimized AV installation for Interior Design that can Hide all video devices in a cabinet, just show a tiny IR receiver extender to outside for controlling
•   TOSLINK Optic Fiber S/PDIF out for lossless sound transmission to amplifer and suround sound speakers
•   RS-232 control allows furfher Home Automation Integration with PC or HA Controller
  PRODUCT SPECIFICATION
  INSTALLATIONS

  DOWNLOADS
  User Guide

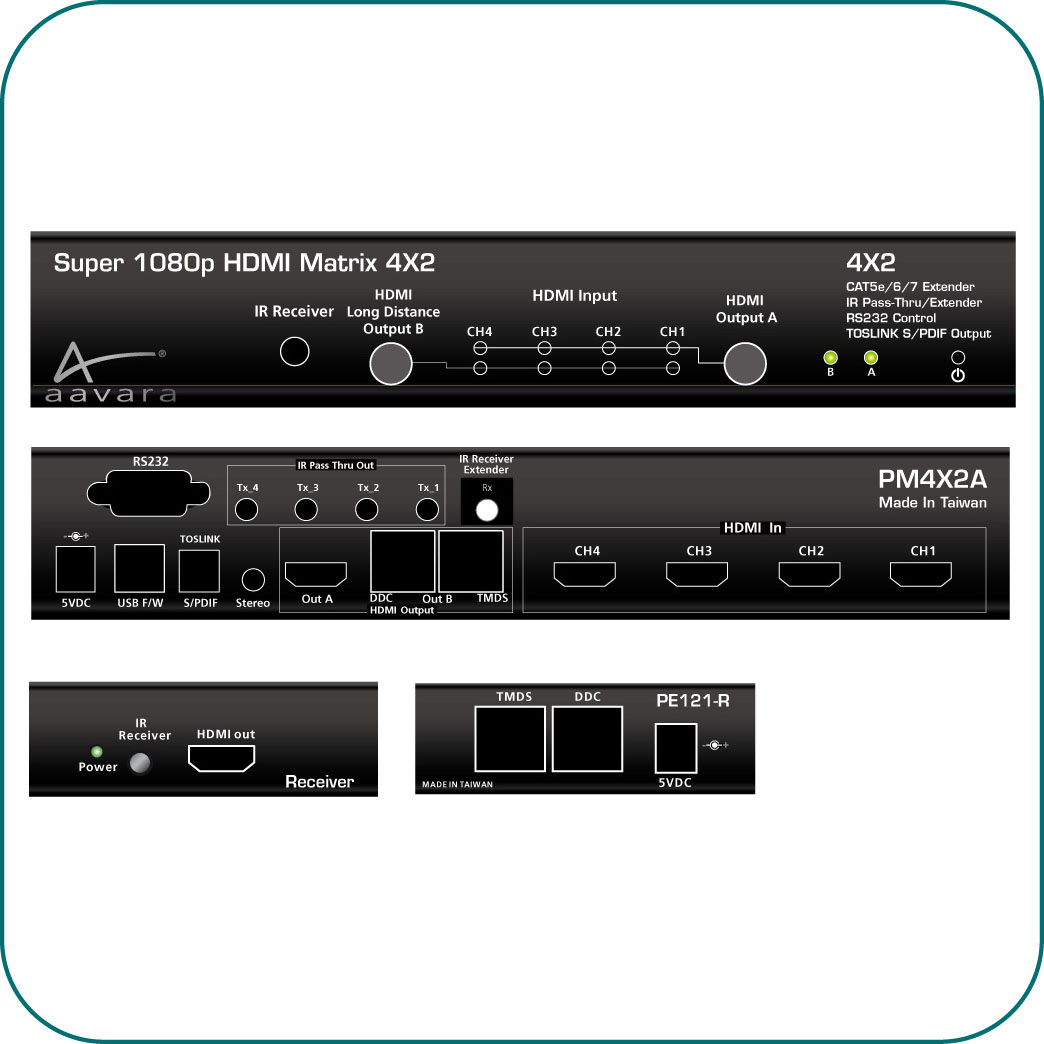

  Dimensional Illustrations

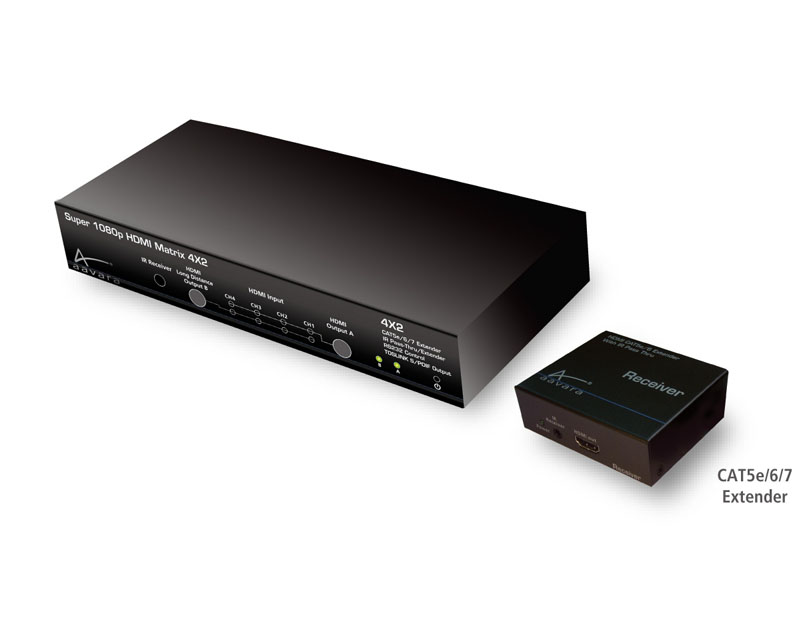

  Product Image
  Package
