PCE122-NEW
HDMI Over Coax Splitter/Extender |
|
|
 |
PCE122 HDMI over Single Coaxial Extender offering 120M HDMI 1080p video and 7.1 channel audio is also being introduced with the objective to, again, simplify installations. Coaxial cable is very suitable for both in-door and out-door deploy, plus PCE122 ultra long distance ultra high video quality transmission makes PCE122 the perfect solution for signage and residential AV application.

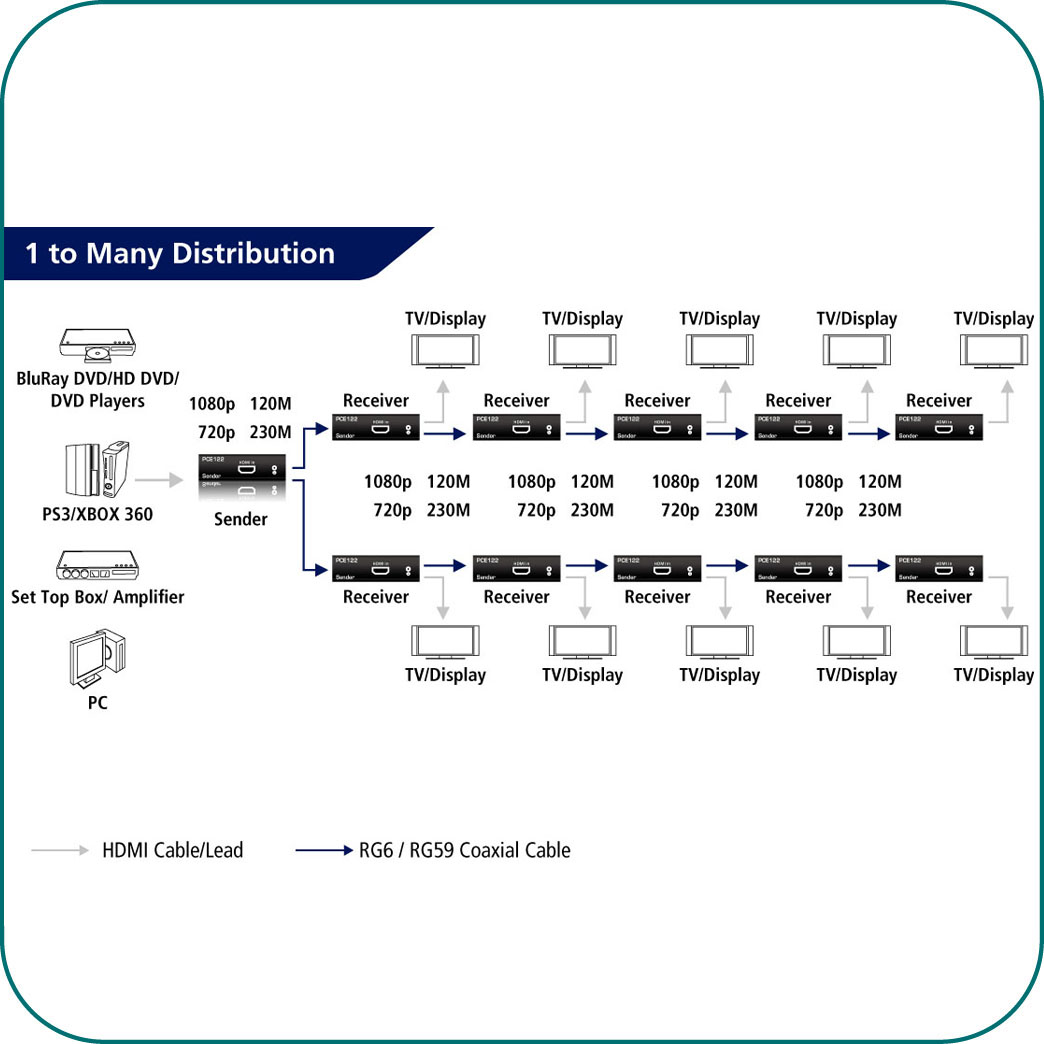

The PCE122 also boasts built-in 1 to 2 Coaxial Splitter in Sender and One Coaxial Cascade output in Receiver which brings greater flexibility as it supports up to 5 layers Cascadable across 600M 1080p video with 7.1 channel audio transmission, for 10 connected TVs, displays or projectors or more. The BNC connector design also ensures a solid coaxial cable connection for vibration and shock resisting. |
 |
|
| Features Specifications Installations Downloads |
| PRODUCT FEATURES |
| • |
Broadcast-grade Coax transmission, designed for Ultra High Quality Video with 7.1 channel Audio |
| • |
1080p 120M long distance by Single RG6U Coax cable, indoor and outdoor deployment |
| • |
Sender Built-in 1 to 2 Coax Splitter, optimized for connecting two Receivers |
| • |
Receiver Built-in One Coax Out for Multi-layers Cascade, Ultra Long distance 1080 Video Transmission and Multiple TVs/ Displays/Projectors connections |
| • |
Built-in 1 to 2 Coaxial Splitter in Sender and One Coaxial Cascade output in Receiver for great extension flexibility |
| • |
F to BNC Adaptors Included for Coaxial Cable with F Connector Convenience |
| • |
BNC connector designed for solid coaxial connection |
| • |
HDMI v1.3b, HDCP Compliant |
| • |
Hassel free plug-n-play, install in sec |
| • |
Up to 7.1 channels audio, Dobly® Digital / Dobly® TruHD/DTS®-HD pass-thru |
|
|
| |
| |
|
| PRODUCT SPECIFICATION |
| • |
HDMI Spec.:1.3b Compliant |
| • |
HDCP Spec.:1.2 Compliant |
| • |

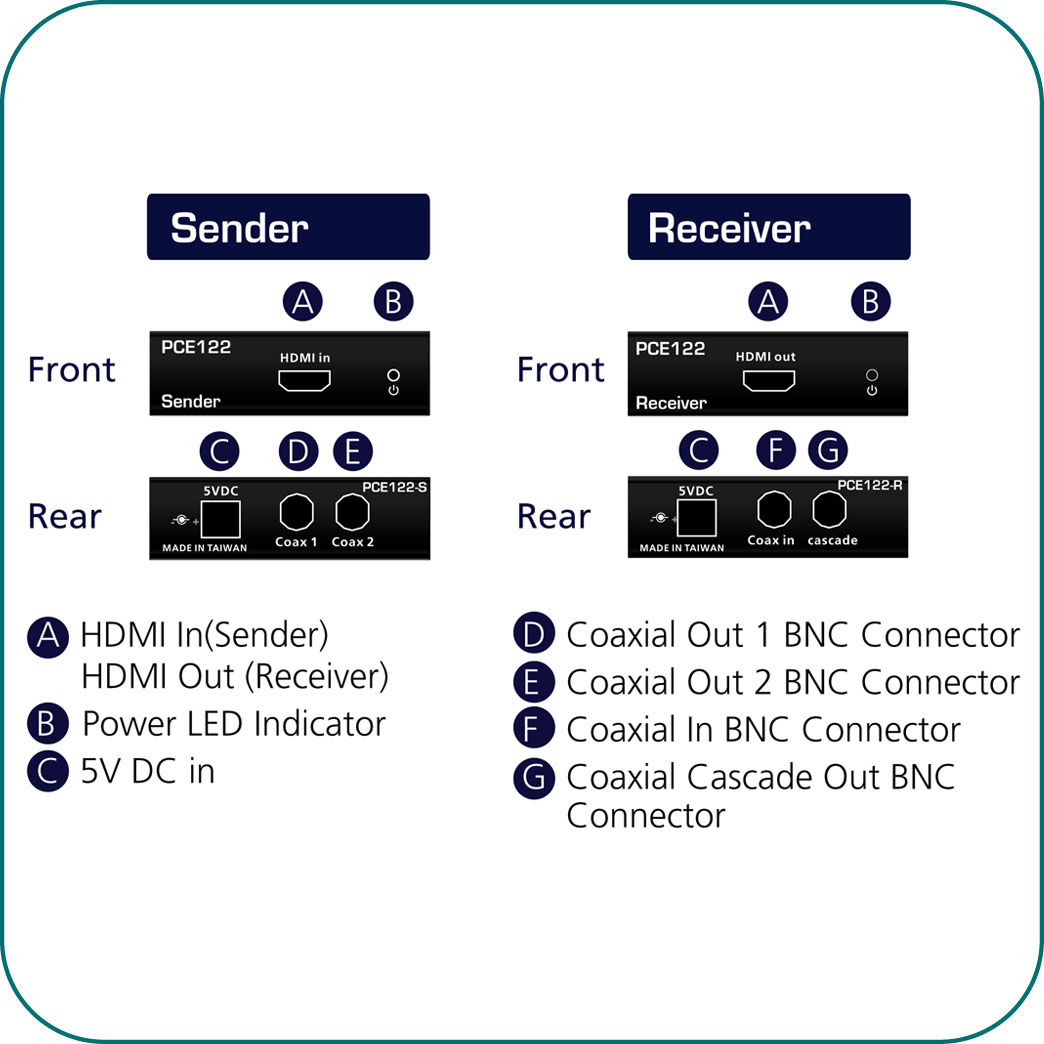

Input Connector-Sender: COAX BNC x 2 (1 to 2 Splitter) |
| • |
Output Connector-Receiver:HDMI Type A x 1, COAX BNC x 1 (Cascade Out) |
| • |
Video Bandwidth:2.97Gb/s data Rates |
| • |
HD Input Resolution:HD Video input 720p, 1080i, 1080p |
| • |
PC DVI Input Resolution:1280X720, 1920X1080@ 50/60 HZ STANDARD TIMING |
| • |
Output Resolution:HD 720p, 1080i, 1080p |
| • |
Max. Distance by Cable & :120M by High Quality Dual or Quad Shielded RG6U coaxial cable with 3 GHz certificate, Max. 100M by 1GHz or 2GHz RG6U coaxial cable, depends on cable quality |
| • |
Dimension:92.4x 117.8x29mm |
| • |
Weight:249g |
| • |
Operating Temperature:Operating Temperature: +0ºC~ +40º C (+32ºF~104ºF) |
| • |
Operating Humidity:10%~ 85% (Non-condensing) |
| • |
Storage Temperature:-20ºC ~ +60º C (+20º F~140º F) |
| • |
External Power Supply:5VDC/ 2A |
| • |
Power Consumption:5Watts (Max) |
| • |
Package Content:HDMi Over Single Coax Sender & Receiver, 5V DC Adapter, Usermanual, F to BNC Adapter *2pcs |
|
|
|

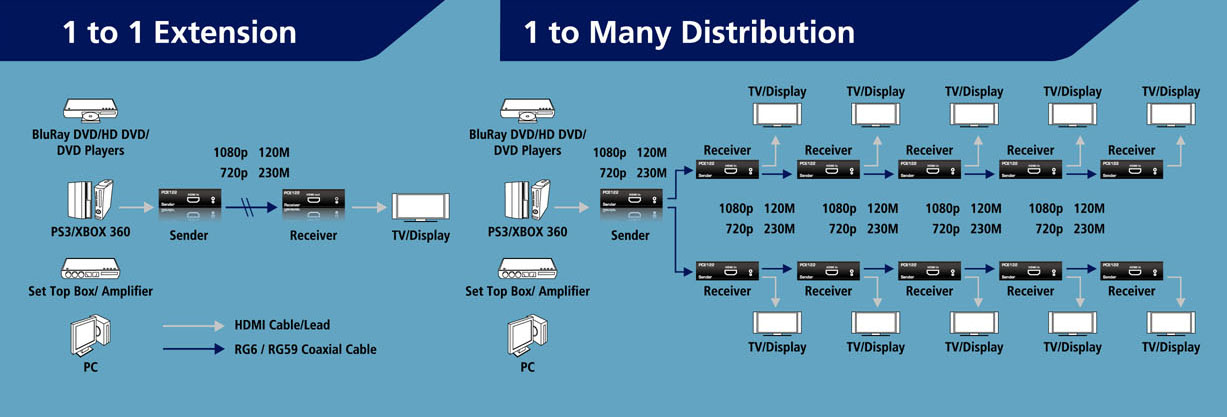

| INSTALLATIONS |
| |
 |
|
|
|
|
| |
 |
|
